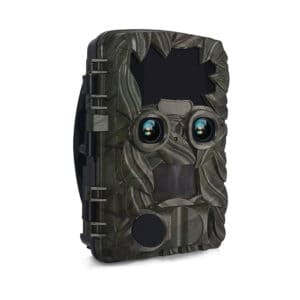

Newtech 20MP Dual Lens trail camera


Capture crystal clear images and video with the Newtech 20MP Dual Lens trail camera. The Dual Lens camera has a designated lens for daytime photos and a designated lens for night time photos. The advantages of our dual lens camera is evident with the increased quality of photos and videos at night.

Or split into 4x interest-free payments Learn more


The dual lens camera is also virtually silent in comparison to a single lens trail camera as it eliminates unnecessary mechanical movement of the IR filter. The Dual lens camera also boasts a longer range of 35m as a pose to your standard 20m IR range. This ensures that your images at night are much sharper than traditional single lens trail cameras.

– 8MP: used for shooting during the day
– 2MP starlight level NIR sensor for shooting at night
– 4k/10fps , 2.7k/20fps , 1080p/30fps video
– 12 months standby time
– 35m range of IR flash
– Trigger time: 0.2 seconds
– 25m triggering distance
– Spray water protected (IP56)
– 512 GB memory card


Image sensor: 8Mega pixels & 2MP starlight level NIR sensor

 Image size: 20MP:5200×3900(interpolated);16MP:4608×3456(interpolated);12MP:4000×3000(interpolated);8M:3264×2448;5M:2592×1944;3M:2048*1536; 1M:1280*960

Video clip: 3840×2160/10fps;2688×1520/20fps;1920×1080/30fps;1280×720/60fps;1280×720/30fps;720×480/30fps; 640×480/30fps;320×240/30fps

File format: JPG/AVI

Lens angle: day: f=3.3mm; F/NO 2.0; FOV=110°;

night: f=4.0mm; F/NO 1.4; FOV=110°

LCD Display: 2.4″TFT 720*320

Memory: External memory (TF card up to 512GB) We recommend class 10 and above

Operation keypad: 8 Keys

The number of IR lamp: 44PCS

Range of IR flash: 35m

Triggering distance: 25m

PIR sensitivity: High/Normal/Low

PIR sensing angle: Main PIR 60 Degrees, side PIR 110 Degrees

Triggering time: 0.2 seconds

Trigger interval: 5 seconds to 60 minutes programmable

Shooting numbers: 1/2/3/6/10

Video Length: 3 sec – 10 mins

Effectiveness: Daytime: 1.5m infinitive, Night time: 1.5m-20m

Camera + Video: First take picture then video

Time stamp: On/Off; Include serial No, temperature and moon phase

Time lapse: On/Off Time lapse programmable

Compressed video: TL Video Time lapse 3 secs – 24 hours

Endless Capture: on/off

Target Recording Time1: Time lapse 1 sec – 24 hours

Target Recording Time2: Time lapse 1 sec – 24 hours

Device serial No: 4 digits set by yourself

Build-in Microphone/Speaker: Yes

Auto-distinguish images: Color images in daytime and white images at night

Automatic screen saver: Auto screen saver if screen has not been used for 2 minutes

TV-out: Yes

PC interface: Mini USB 2.0

Power supply: 4 X AA, expandable to 8 X AA, external 6v power supply at least 1.5A

Standby time: Approximately 12 months

Lockable: Optional

Password protection: 4 digit numbers

Operating temperature: -20℃ to +60℃

Storage Temperature: -30℃ to +70℃

Dimensions: approx.136*90*76mm
